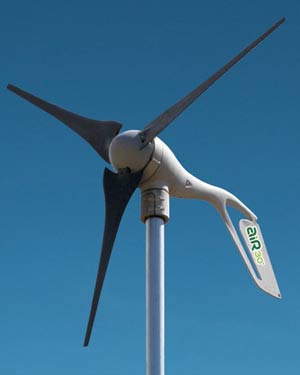

Air 30 Turbine

Optimum energy in high wind environments

When you need energy, our AIR 30 delivers. It's hands down the best energy choice for off-grid land-based applications in high wind environments. Use it for SCADA, telecom, security, cathodic protection -- you name it. With optimized software, AIR 30 consistently delivers energy where it matters. The AIR 30’s heavy-duty design can withstand most high wind environments. The AIR 30 is an ideal turbine for hybrid combinations with solar PV. Not for use in marine environments. AIR 30 is built and backed by the worldwide leader in small wind.

point.png High-quality, third-party tested components for reliability and safety
point.png Pair with solar PV for redundant energy production year-round
point.png Advanced microprocessor technology for superior performance and high wind protection without mechanical braking
point.png Lightweight design is simple and easy-to-install; integrated power electronics for plug-and-play operation
point.png Produces 30 kWh of energy a month* for land-based, high wind applications



AIR 30 Certifications:

point.png Restrictive of Hazardous Substances (RoHS) Compliance
point.png Canadian Standards Association (CSA) International Certificate of Compliance
point.png CE Declaration of Comformity (for battery charging applications only)






Technical Specifications

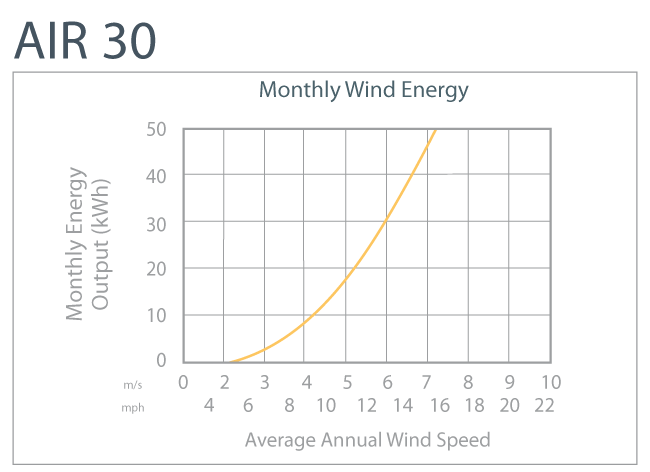

Energy Approx. 30 kWh/mo at 5.8 m/s (13 mph)
Swept Area 1.07 m2 (11.5 ft2)
Rotor Diameter 1.17 m (46 in)
Weight 5.9 kg (13 lb)
Shipping Dimensions 686 x 318 x 229 mm (27 x 12.5 x 9 in) 7.7 kg (17 lb)
Startup Wind Speed 3.58 m/s (8 mph)
Voltage 12, 24 and 48 VDC
Turbine Controller Mircoprocessor-based smart controller
Body Permanent mold cast aluminum
Blades (3) Injection-molded composite
Alternator Permanent magnet brushless
Overspeed Protection Electronic torque control
Survival Wind Speed 49.2 m/s (110 mph)
Mount 1.5 in schedule 40 pipe 48 mm (1.9 in) outer diameter
Wind Speed Operating Range 3.6-22 m/s (8-49 mph)
Optimum Wind Speed Range 11-15 m/s (25-32 mph)
