Photovoltaic Arrestors
Silicon Oxide Arrestor for Photovoltaic and Other Limited Current DC Applications.





Specifications
Type of design Silicon Oxide Varistor

Weatherproof Enclosure N-4
Dimensions:
2-1/4" High,
2-1/4" Diameter
LA302DC
LA302R
Maximum number of surges Unlimited
Response time one milliamp test 5 nanoseconds
Response time to clamp 10,000 amps 10 nanoseconds
Response time to clamp 50,000 amps 25 nanoseconds


  LA302DC LA602DC
Maximum Current 60,000 amps 100,000 amps
Maximum Energy 2,000 joules per pole 3,000 joules per pole


Weatherproof Enclosure N-4
Dimensions:
4-1/2" High,
2-1/4" Diameter

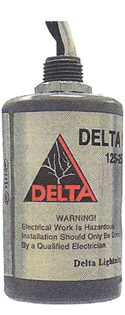

LA602DC
LA602DC for 0 to 1100 Volts, dc
LA302DC for 0 to 500 Volts, dc
LA302R for 0 to 300 Volts, ac

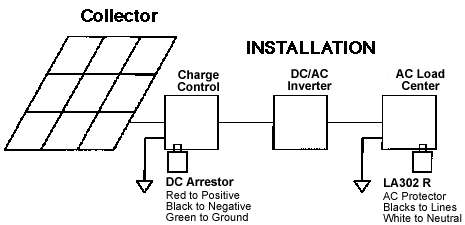

PV Arrestors

Delta silicon arrestors comply with all requirements of photovoltaic systems.
1. Deltas do not draw continuous current.
2. Deltas consume no power during stand-by.
3. Delta's clamping voltage does not change with age.
4. When Deltas fail, they fail to open circuit to permit continued operation of PV systems.
5. Deltas contain no current limiting fuses or resistance.
6. Deltas are fire resistant.
